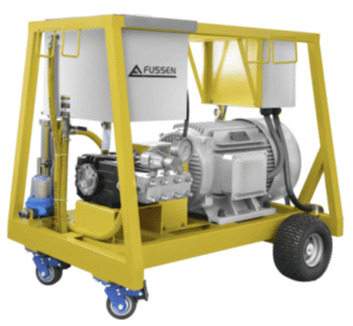

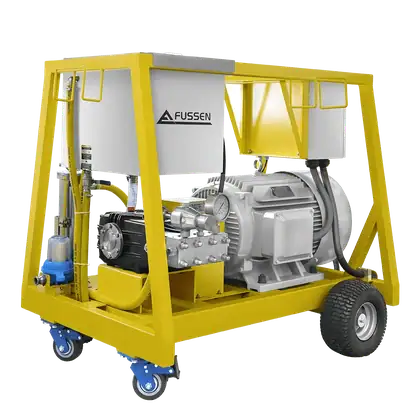

FUSSEN FKE SERIES
FUSSEN FKE SERIES
600 to 1000 bar | 20 to 40 L/min
The FKE Series is built for demanding industrial and marine cleaning that needs both high pressure and stable water intake for continuous work. Powered by an industrial motor, it delivers up to 1000 bar at up to 40 L/min, suited to hull cleaning, deck maintenance, rust removal, and surface preparation in shipyards and onboard.
It combines a stainless high-pressure plunger pump, a booster pump for reliable supply, and a built-in water tank to steady operation and cut downtime from inlet fluctuation. A heavy-duty carbon-steel frame provides strength in harsh conditions.
- Booster pump and water tank: stable supply for long, uninterrupted shifts
- Industrial-grade motor: six-pole, low-speed, quiet and durable
- Intelligent soft start: smooth start-up that reduces wear
- Premium plunger pump: stainless build with alloy plungers and premium seals
- Low water level protection: float-valve tank prevents dry running
technical specifications
Technical Specifications
| Model | FKE 40/60 | FKE 25/80 | FKE 20/100 | FKE 25/100 |
| Voltage (Ph/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 | 3/380/50 |
| FlowRate (L/min) | 40 | 25 | 20 | 25 |
| Pressure (Bar/Mpa/PSI) | 600/60/8700 | 800/80/11600 | 1000/100/14500 | 1000/100/14500 |
| Power ( kW ) | 45 | 37 | 37 | 45 |
| RPM | 1000 | 1000 | 1000 | 1000 |
| Weight ( kg ) | 850 | 850 | 850 | 850 |
| Dimensions (L x W x H mm) | 1550x1050x1350 | 1550x1050x1350 | 1550x1050x1350 | 1550x1050x1350 |
Key Components
- Intelligent Electric Control Box ( Soft Start )
- Industrial-Grade Motor
- Stainless Steel High-Pressure Plunger Pump
- Pressure Regulating Valve
- Safety Valve
- Stainless Steel Pressure Gauge
- High-Precision Filter
- Water Tank
- Booster Pump
- Float Valve
- Carbon Steel Heavy Duty Frame
- Pneumatic Tires
- Swivel Wheels
- Dump Gun
- Fan-Shaped Nozzle
- High-Pressure Hose
- Optional Accessories
- Rotating Nozzle
