FUSSEN FDE SERIES
FUSSEN FDE SERIES
500 to 1000 bar | 15 to 36 L/min

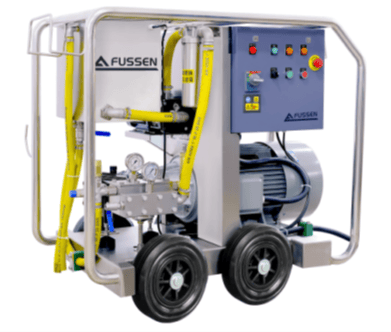

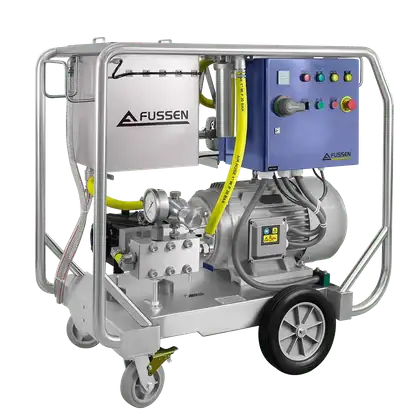

The FDE Series is an electric high-pressure washer for heavy-duty marine and industrial work where real surface impact is required, such as rust removal, coating preparation, and intensive ship maintenance. An industrial-grade motor and stainless high-pressure plunger pump deliver up to 1000 bar at 15 to 36 L/min, giving both cutting force and productivity depending on configuration.
A built-in water tank supports stable delivery, soft-start control reduces startup stress, and low water level protection prevents dry-running that can damage the pump. The corrosion-resistant structure is built for shipboard and shipyard conditions.
- Low water level protection: float-valve tank prevents pump damage from dry running
- Intelligent soft start: smooth motor start-up that extends machine life
- Stainless-steel frame: corrosion-resistant for long-term marine use
- Premium plunger pump: stainless build with alloy plungers and premium seals
- Industrial-grade motor: four-pole, low-speed, quiet and durable
technical specifications
Technical Specifications
| Model | FDE 30/50 | FDE 20/80 | FDE 15/100 | FDE 36/50 | FDE 24/80 | FDE 18/100 |
| Voltage (Ph/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 | 3/440/60 | 3/440/60 | 3/440/60 |
| FlowRate (L/min) | 30 | 20 | 15 | 36 | 24 | 18 |
| Pressure (Bar/Mpa/PSI) | 500/50/7250 | 800/80/11600 | 1000/100/14500 | 500/50/7250 | 800/80/11600 | 1000/100/14500 |
| Power ( kW ) | 30 | 30 | 30 | 36 | 36 | 36 |
| RPM | 1450 | 1450 | 1450 | 1750 | 1750 | 1750 |
| Weight ( kg ) | 450 | 455 | 455 | 450 | 455 | 455 |
| Dimensions (L x W x H mm) | 1350 x 680 x 1200 | 1350 x 680 x 1200 | 1350 x 680 x 1200 | 1350 x 680 x 1200 | 1350 x 680 x 1200 | 1350 x 680 x 1200 |
Key Components
- Intelligent Electric Control Box ( Soft Start )
- Industrial-Grade Motor
- Stainless Steel High-Pressure Plunger Pump
- Pressure Regulating Valve
- Safety Valve
- Stainless Steel Pressure Gauge
- Y Type Filter
- High-Precision Filter
- Stainless Steel Heavy-Duty Frame
- Water Tank
- Swivel Wheels
- Dump Gun
- Fan-Shaped Nozzle
- High-Pressure Hose
- Optional Accessories
- Rotating Nozzle
