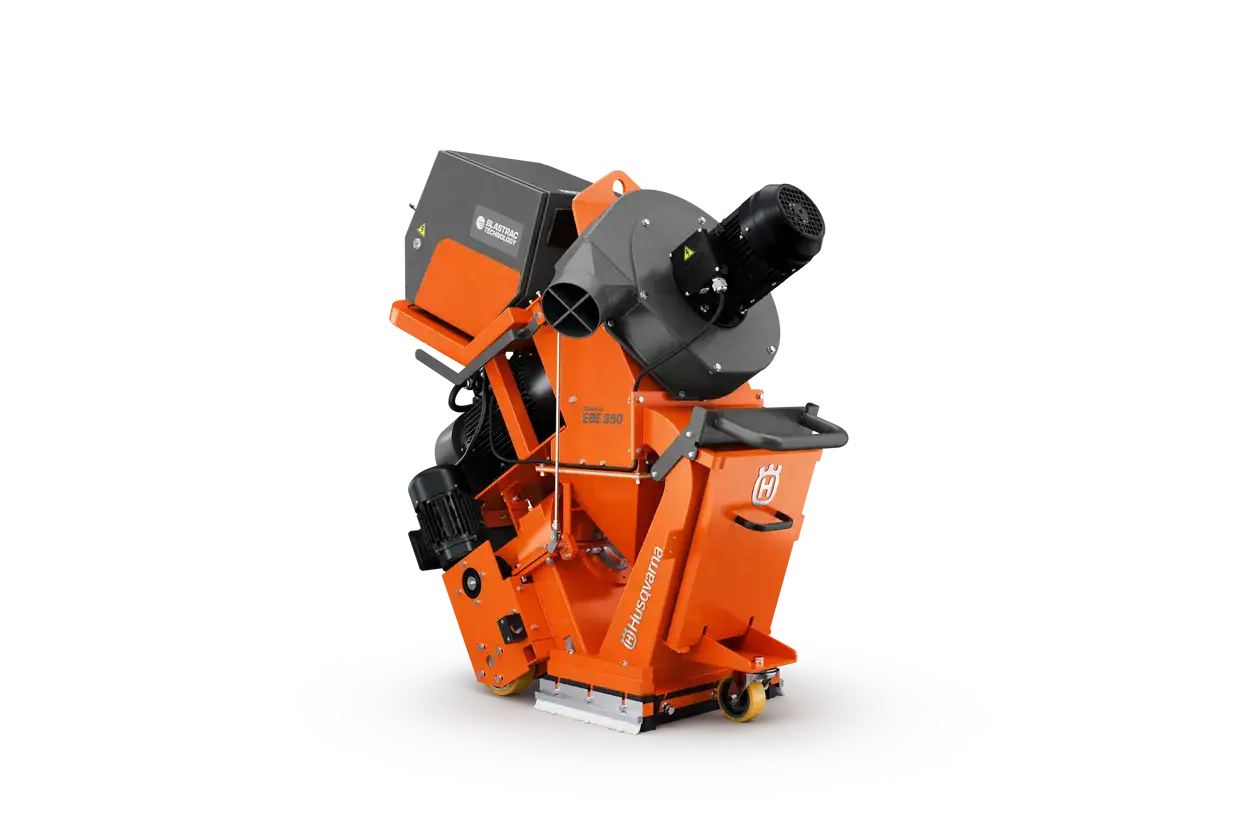

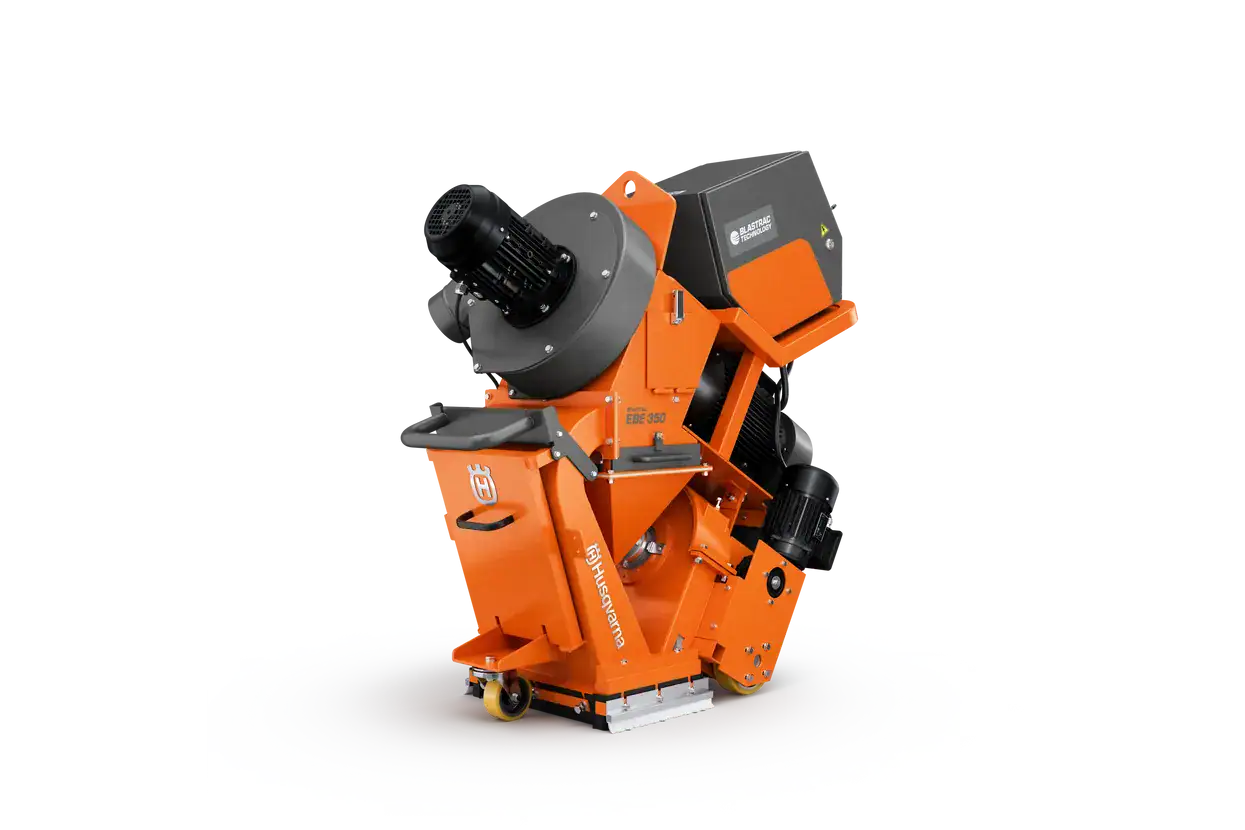

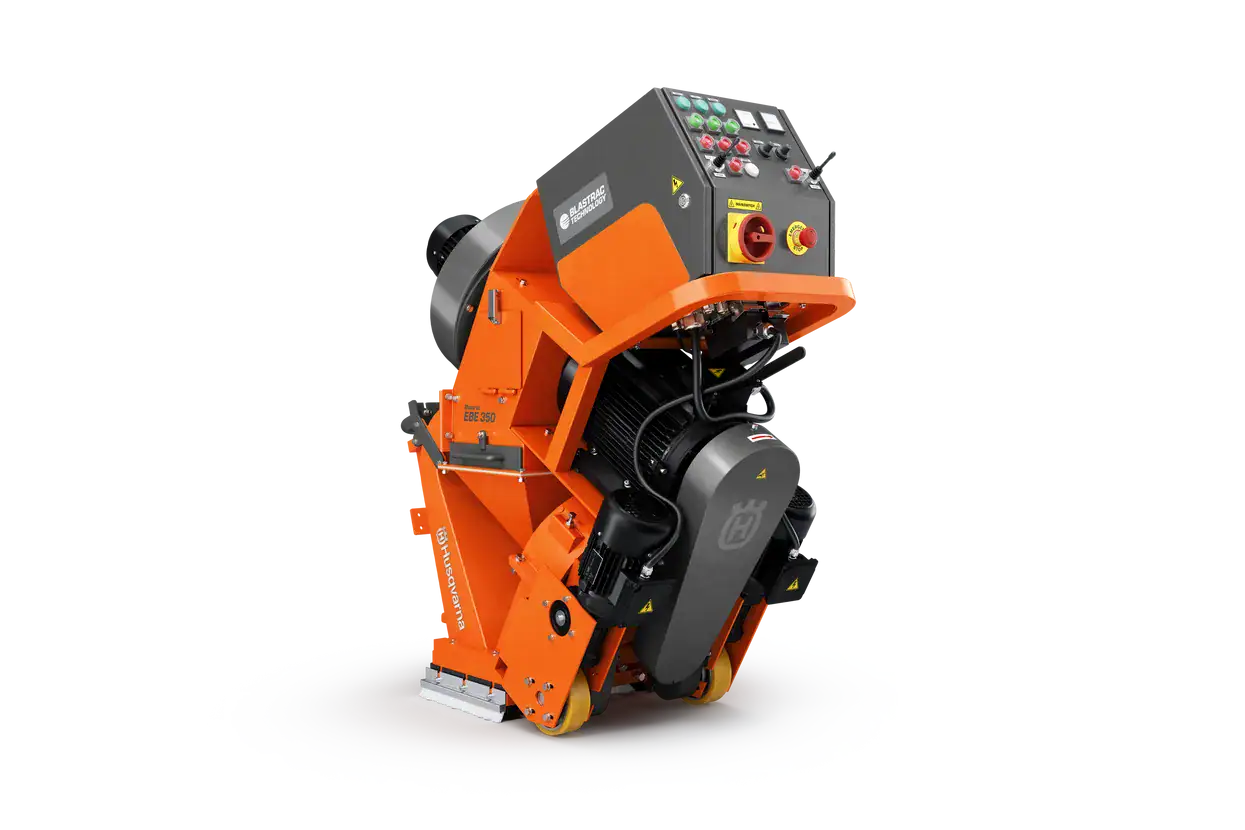

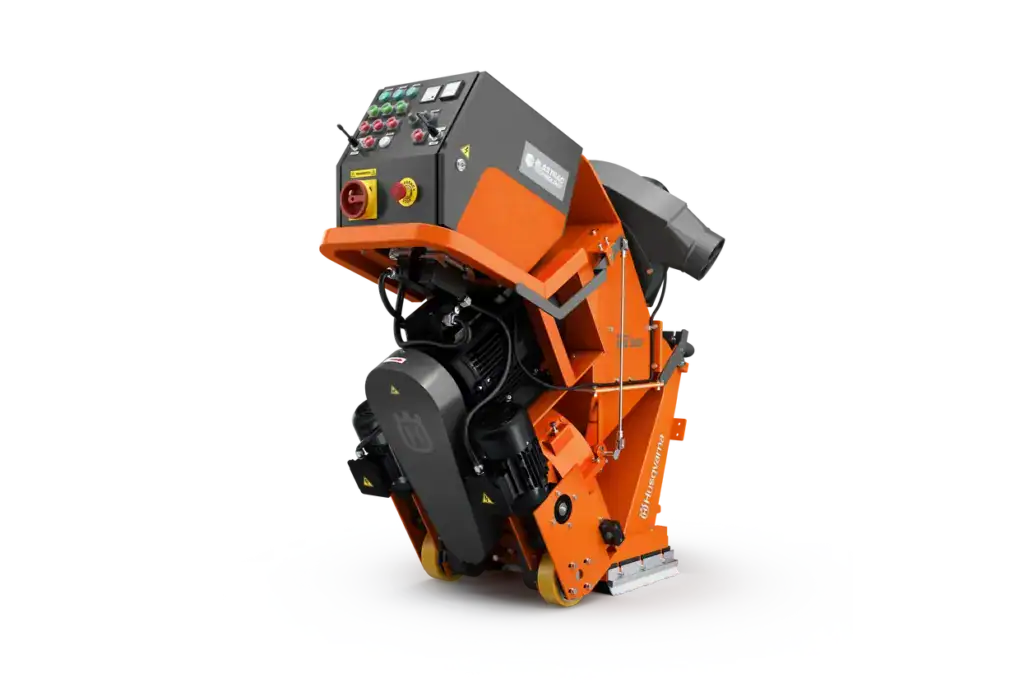

BLASTRAC EBE 350
BLASTRAC EBE 350
The Blastrac EBE 350 is an electric steel blasting machine built for small and medium horizontal steel jobs. It prepares steel ahead of new coatings and strips existing paint and coatings from steel surfaces.
Its modular construction disassembles and reassembles through a Ø600 mm opening, so it can be carried into confined spaces. This makes it well suited to internal tank bottoms and tank roofs, as well as ship decks, steel plates, oil platform helicopter decks and walkways, bridge decks, navy ship decks and steel flooring.
- Electric drive for small to medium horizontal steel jobs
- Modular build passes through a Ø600 mm opening
- Prepares steel before coating and removes old paint and coatings
- Suits tank bottoms, tank roofs, ship decks, bridge decks and steel floors
technical specifications
| All Specifications | BLASTRAC EBE 350 400 V | 50 Hz |
BLASTRAC EBE 350 400 V | 60 Hz |
|---|---|---|
| Motor | ||
| Output Power | 11 kW | 11 kW |
| Voltage | 400 V | 400 V |
| Frequency | 50 Hz | 60 Hz |
| Rated Current | 32 A | 32 A |
| Phases | 3 ph | 3 ph |
| Power Source | Corded | Corded |
| Product Data | ||
| Working Width | 35 cm | 35 cm |
| Dust Hose Connection | 127 mm | 127 mm |
| Steel Shot Consumption | 500 g/m² | 500 g/m² |
| Productivity | 38 m²/h | 38 m²/h |
| Transmission | ||
| Type of Operation | Push | Push |
| Dimensions | ||
| Product Size Length | 1,350 mm | 1,350 mm |
| Product Size Width | 650 mm | 650 mm |
| Product Size Height | 1,100 mm | 1,100 mm |
| Weight (Complete Product w/o Side Packed Articles) | 430 kg | 430 kg |
| Packaging Length | 1,400 mm | 1,400 mm |
| Packaging Width | 900 mm | 900 mm |
| Packaging Height | 1,420 mm | 1,450 mm |
| Article Gross Weight | 454,000 g | 473,000 g |
