BLASTRAC DC900
BLASTRAC DC900

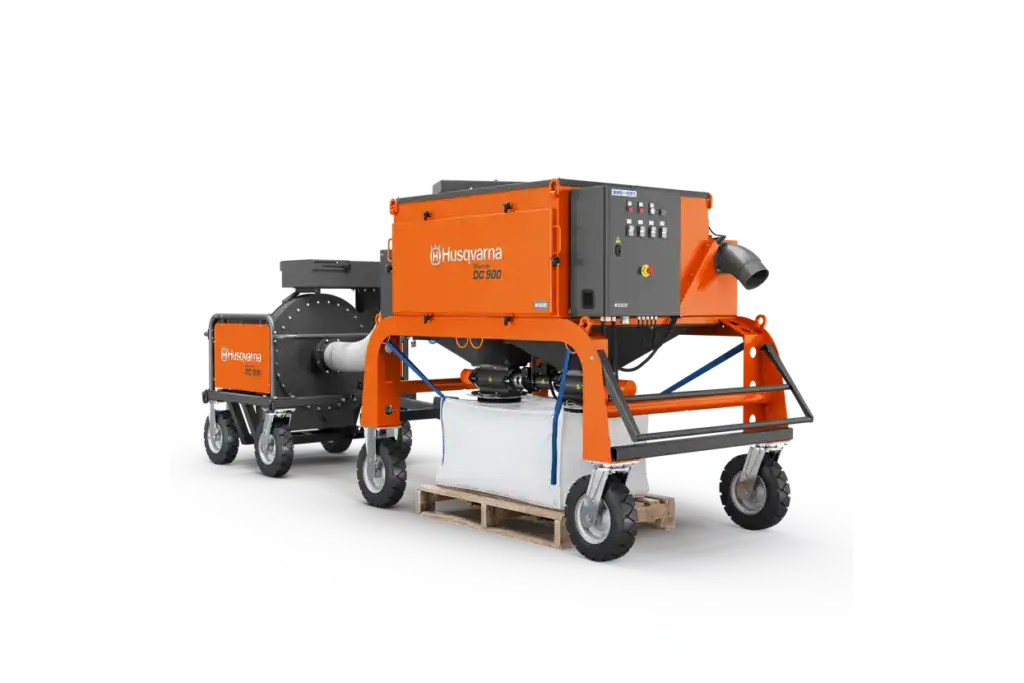

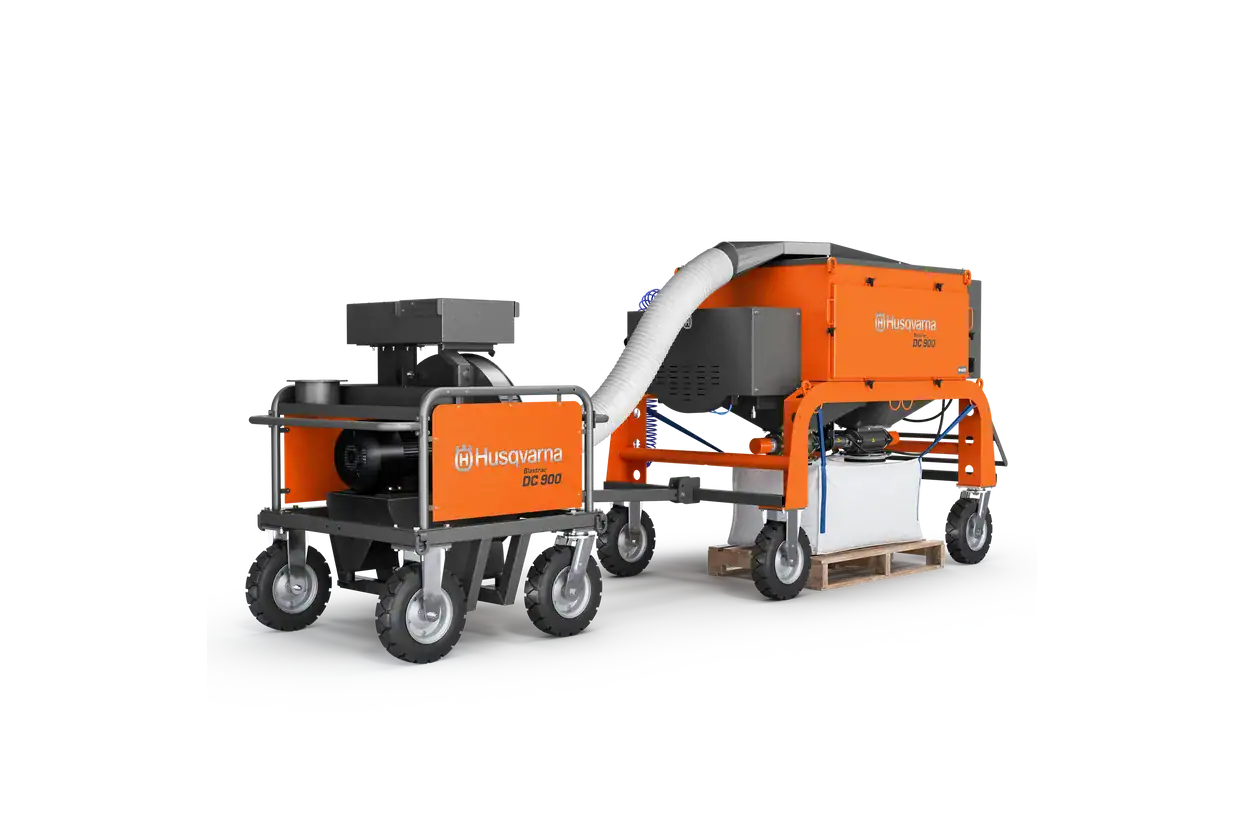

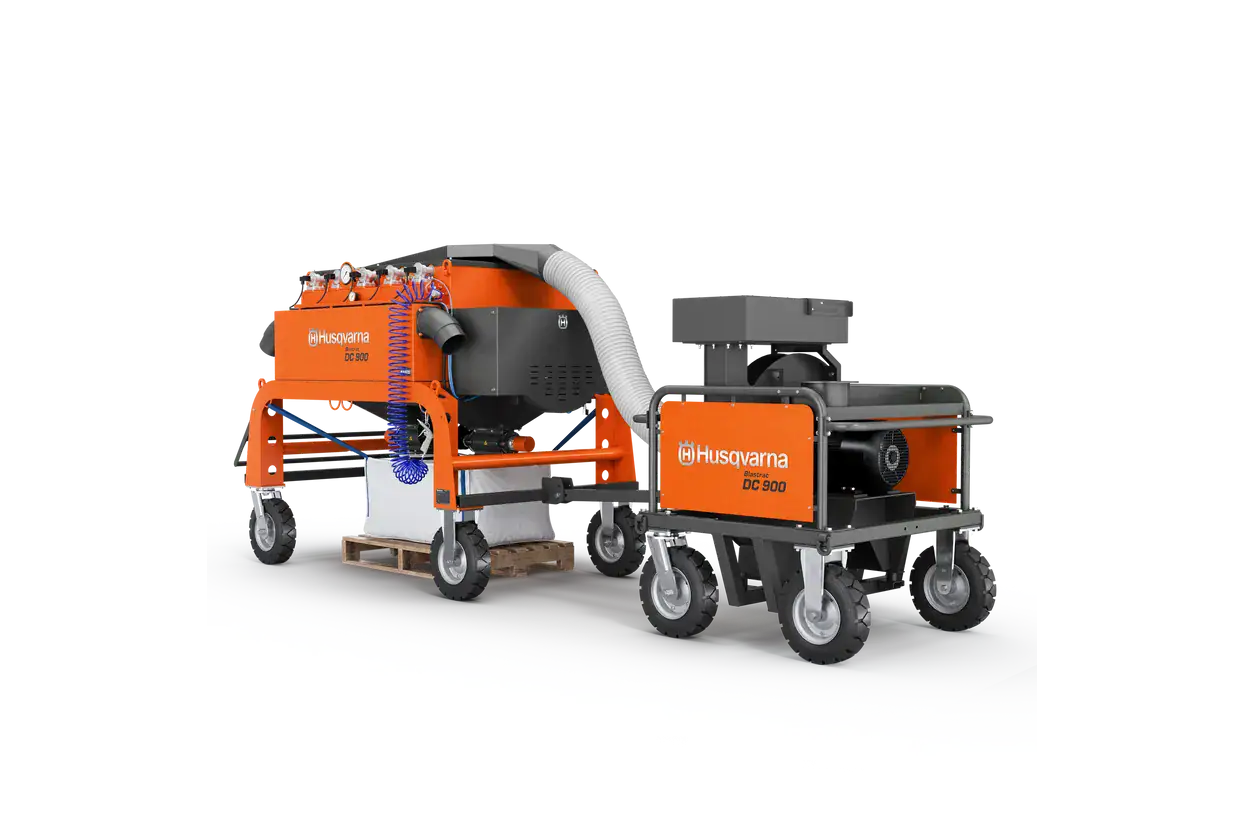

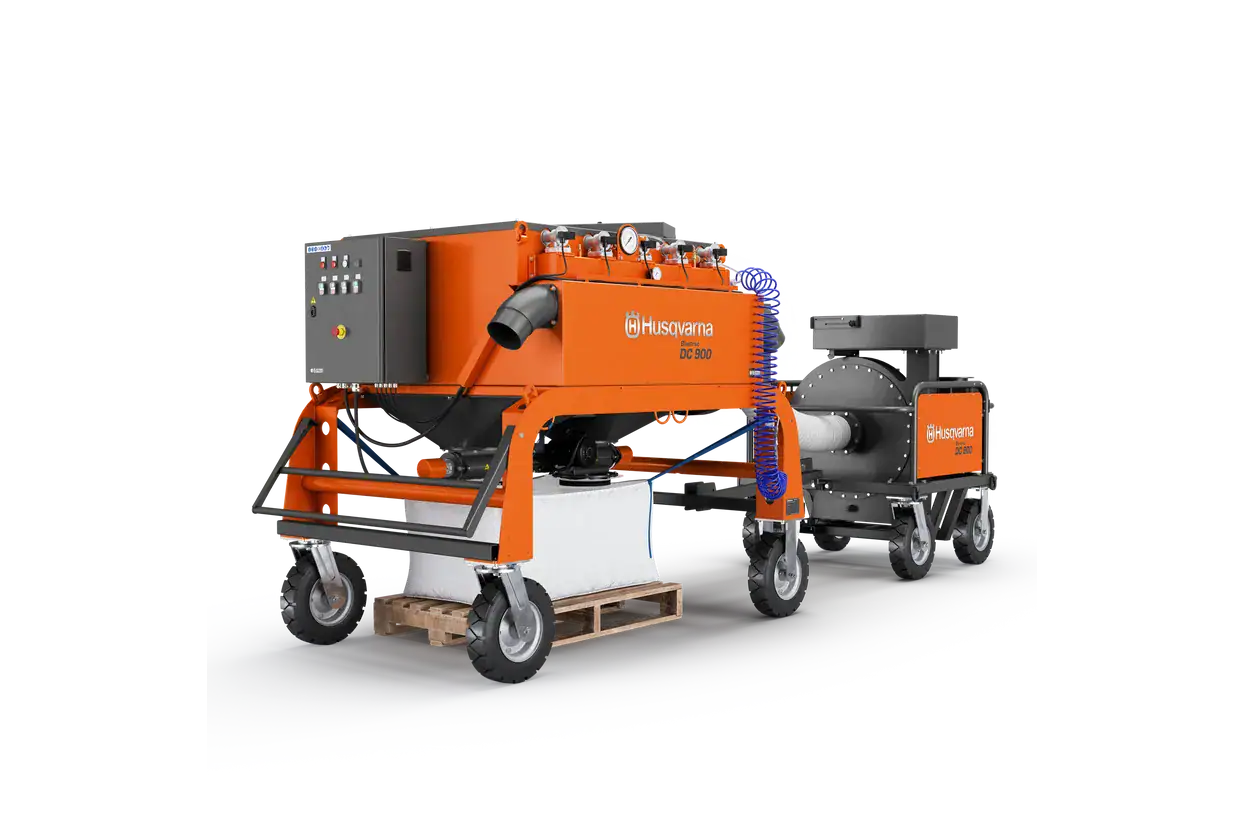

The Blastrac DC 900 is a heavy-duty dust collection system built to run with the Husqvarna Blastrac EBE 900V vertical steel blaster. It is made of two parts, a dust collection unit and a fan unit, for high extraction power.
Twenty high-quality M-class cartridge filters are cleaned automatically by a pulse cleaning system, and dust is collected in a quick-change big-bag system. An optional drive system can be added to make the unit easy to move despite its size.
- Two-part system: dust collection unit plus fan unit
- Matched to the EBE 900V vertical steel blaster
- 20 M-class cartridge filters with automatic pulse cleaning
- Big-bag collection, optional drive system
technical specifications
| Specification | Details |
|---|---|
| Motor | |
| Power Source | Corded |
| Phases | 3 ph |
| Voltage | 400 V |
| Rated Input Power | 17 kW |
| Rated Current | 32 A |
| Frequency | 50 Hz |
| Product Data | |
| Air Flow | 4,000 m³/h |
| Container Capacity | 385 L |
| Dimensions | |
| Product Size Length | 2,250 mm |
| Product Size Width | 1,365 mm |
| Product Size Height | 1,976 mm |
| Weight (Complete Product w/o Side Packed Articles) | 1,360 kg |
| Packaging Length | 1,500 mm |
| Packaging Width | 2,300 mm |
| Packaging Height | 1,560 mm |
| Article Gross Weight | 948,000 g |
