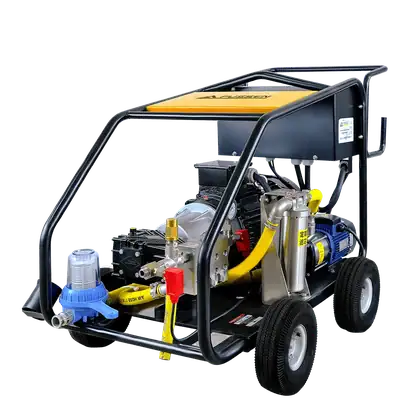

FUSSEN FLE SERIES
FUSSEN FLE SERIES
160 to 200 bar | 40 to 70 L/min
The FLE Series is a high-flow industrial washer for jobs where water volume matters more than extreme pressure. Delivering up to 70 L/min at 160 to 200 bar, it suits pipeline flushing, large-area cleaning, tank and container wash-down, and industrial equipment maintenance where fast coverage saves time.
A built-in booster pump keeps water intake stable even when inlet conditions are poor, and the soft-start system reduces startup stress for longer motor and pump life. The heavy-duty frame handles demanding sites while staying practical to move.
- Booster pump: stainless centrifugal pump keeps flow to the plunger pump reliable
- Premium plunger pump: stainless build with ceramic plungers and durable seals
- Industrial-grade motor: four-pole, low-speed, quiet and durable
- Intelligent soft start: smooth start-up that reduces wear and extends life
technical specifications
Technical Specifications
| Model | FLE 40/20 | FLE 50/20 | FLE 60/18 | FLE 70/16 |
| Voltage (Ph/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 | 3/380/50 |
| FlowRate (L/min) | 40 | 50 | 60 | 70 |
| Pressure (Bar/Mpa/PSI) | 200/20/2900 | 200/20/2900 | 180/18/2610 | 160/16/2320 |
| Power ( kW ) | 15 | 22 | 22 | 22 |
| RPM | 1450 | 1450 | 1450 | 1450 |
| Weight ( kg ) | 250 | 280 | 280 | 280 |
| Dimensions (L x W x H mm) | 950 x 700 x 900 | 980 x 700 x 920 | 980 x 700 x 920 | 980 x 700 x 920 |
Key Components
- Intelligent Electric Control Box ( Soft Start )
- Industrial-Grade Motor
- Coupling
- High-Pressure Plunger Pump
- Pressure Regulating Valve
- High-Precision Filter
- Stainless Steel Pressure Gauge
- Stainless Steel Booster Pump
- High Precision Filter
- Stainless Steel Filter
- Carbon Steel Heavy Duty Frame
- Solid Tires
- Swivel Wheels
- High-Pressure Gun
- Fan-Shaped Nozzle
- High Pressure Hose
- Optional Accessories
- Rotating Nozzle
- Foot Valve
- Hose Reel
- Pipe Cleaning Nozzle
