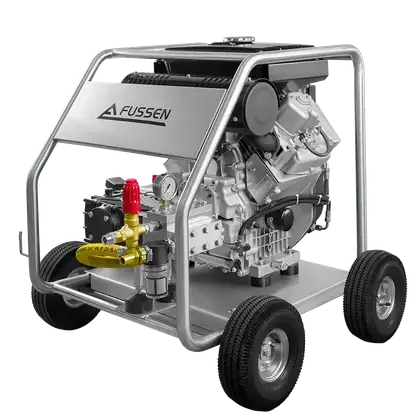

FUSSEN FBD SERIES
FUSSEN FBD SERIES
280 to 500 bar | 15 to 30 L/min
The FBD Series is a diesel high-pressure washer for heavier cleaning that needs stronger output and stable continuous running. A powerful diesel engine delivers up to 500 bar at 30 L/min, effective for industrial wash-down, heavy equipment cleaning, and stubborn dirt removal where higher pressure speeds the job.
A premium high-pressure plunger pump holds performance under load, and the heavy-duty frame is built for demanding environments while supporting easy on-site movement.
- Powerful diesel engine: independent power, quiet, durable, long service life
- Premium plunger pump: ceramic plungers and durable seals for stable performance
- Heavy-duty frame: built for demanding jobsite conditions
- Compact and easy to handle: practical to move on site
technical specifications
Technical Specifications
| Model | FBD 15/35 | FBD 18/28 | FBD 21/35 | FBD 15/50 | FBD 30/30 |
| FlowRate (L/min) | 15 | 18 | 21 | 15 | 30 |
| Pressure (Bar/Mpa/PSI) | 350/35/5075 | 280/28/4000 | 350/35/5075 | 500/50/7250 | 300/30/4350 |
| Power ( kW ) | 11 | 11 | 15 | 15 | 18 |
| RPM | 1450 | 1450 | 1450 | 1450 | 1450 |
| Weight ( kg ) | 165 | 165 | 165 | 185 | 185 |
| Dimensions (L x W x H mm) | 1100x600x920 | 1100x600x920 | 1100x600x920 | 1100x600x920 | 1100x600x920 |
Key Components
- Diesel Engine
- Fuel Tank
- High-Pressure Plunger Pump
- Gearbox
- Pressure Regulating Valve
- High-Precision Filter
- Stainless Steel Pressure Gauge
- Battery
- Stainless Steel Heavy-Duty Frame
- Pneumatic Tires
- High-Pressure Gun
- Fan-Shaped Nozzle
- High-Pressure Hose
- Optional Accessories
- Rotating Nozzle
