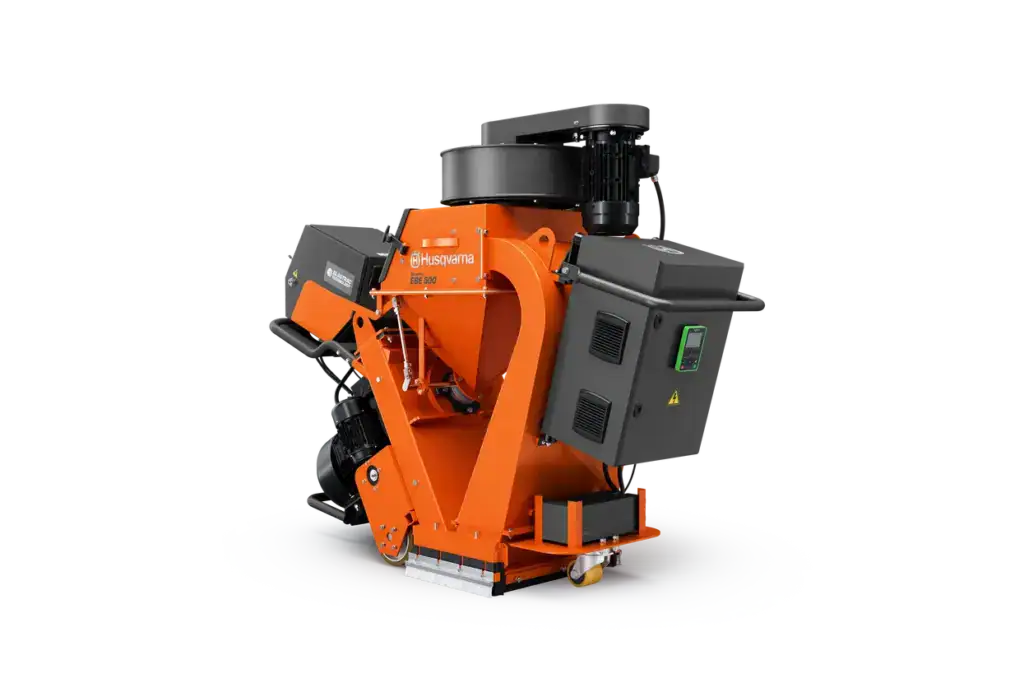

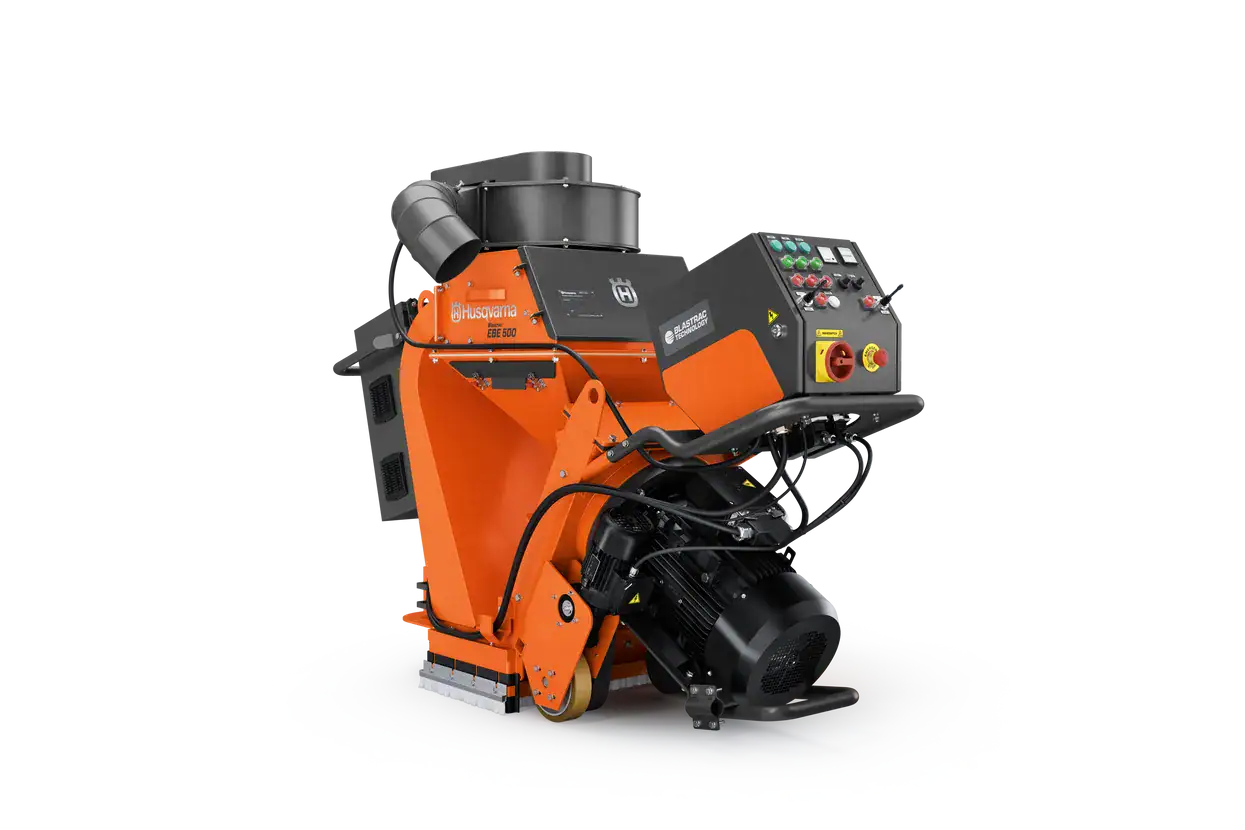

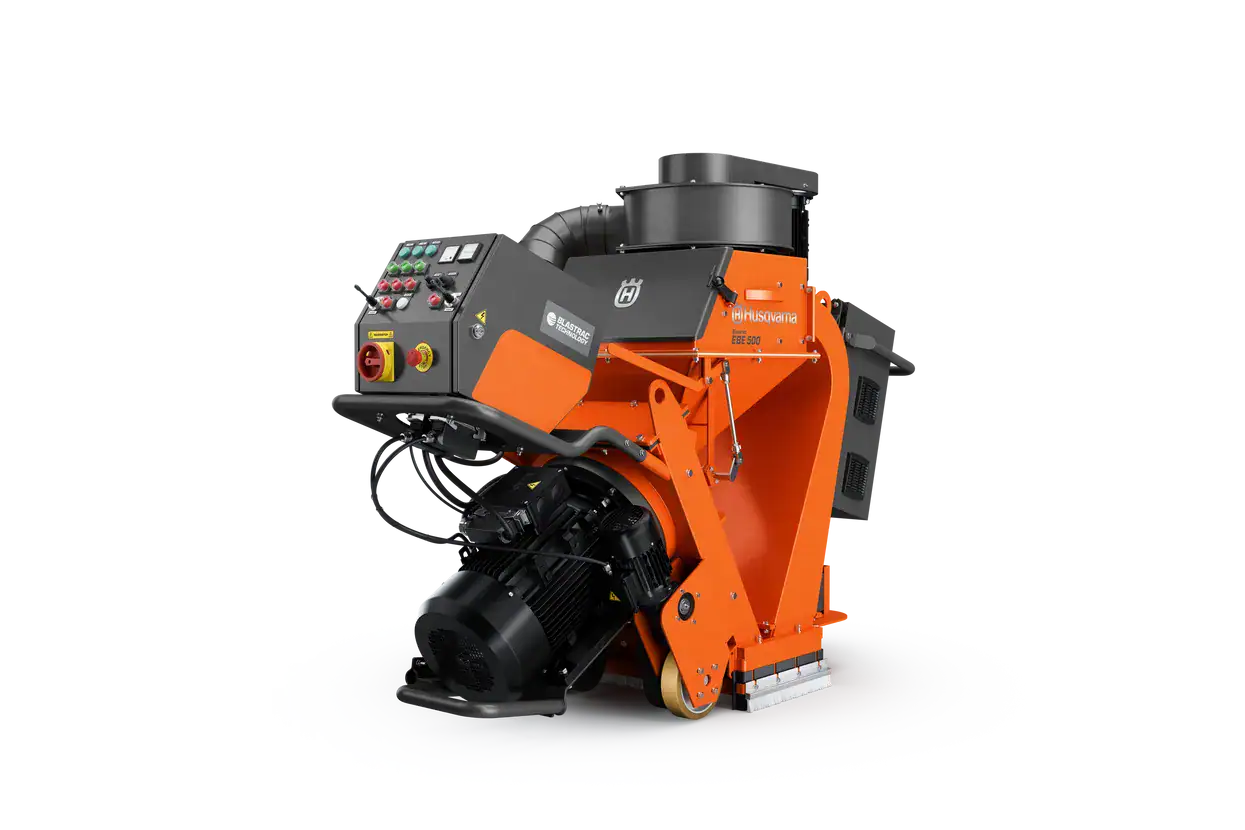

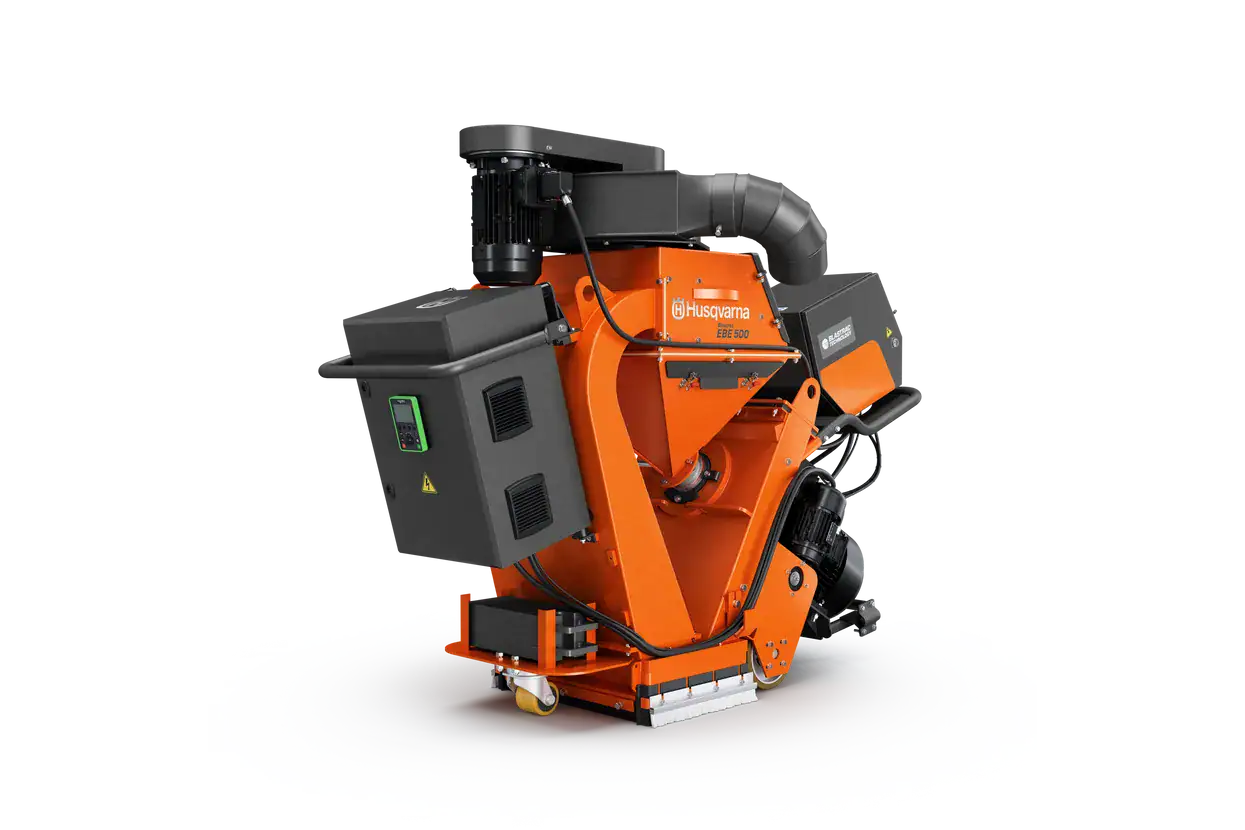

BLASTRAC EBE 500
BLASTRAC EBE 500
The Blastrac EBE 500 is a high-productivity steel blast cleaning machine with a large blast width for big jobs. Its modular construction lets it pass through narrow openings and reach awkward areas, and a lowering kit reduces the machine height to 1460 mm for tighter clearances.
It is built for large horizontal steel surfaces such as ship decks, steel plates, oil platform helicopter decks and walkways, and bridge decks. A strong fit for shipyard and infrastructure projects across Euroblast’s UAE, Saudi Arabia and Qatar markets.
- Large blast width for high productivity on big jobs
- Modular construction fits through narrow openings
- Lowering kit reduces height to 1460 mm
- Suits ship decks, steel plates, oil platform decks and bridge decks
technical specifications
| All Specifications | BLASTRAC EBE 500 400 V | 50 Hz |
BLASTRAC EBE 500 400 V | 60 Hz |
|---|---|---|
| Motor | ||
| Output Power | 22 kW | 26.4 kW |
| Voltage | 400 V | 400 V |
| Frequency | 50 Hz | 60 Hz |
| Rated Current | 63 A | 63 A |
| Phases | 3 ph | 3 ph |
| Power Source | Corded | Corded |
| Product Data | ||
| Working Width | 50 cm | 50 cm |
| Dust Hose Connection | 150 mm | 150 mm |
| Steel Shot Consumption | 500 g/m² | 500 g/m² |
| Productivity | 75 m²/h | 75 m²/h |
| Transmission | ||
| Type of Operation | Push | Push |
| Dimensions | ||
| Product Size Length | 1,938 mm | 1,569 mm |
| Product Size Width | 740 mm | 740 mm |
| Product Size Height | 1,672 mm | 1,672 mm |
| Weight (Complete Product w/o Side Packed Articles) | 742 kg | 670 kg |
| Packaging Length | 2,130 mm | 2,130 mm |
| Packaging Width | 920 mm | 920 mm |
| Packaging Height | 1,670 mm | 1,670 mm |
| Article Gross Weight | 866,000 g | 864,000 g |
