FUSSEN FME SERIES
FUSSEN FME SERIES
Up to 500 bar | 15 to 22 L/min

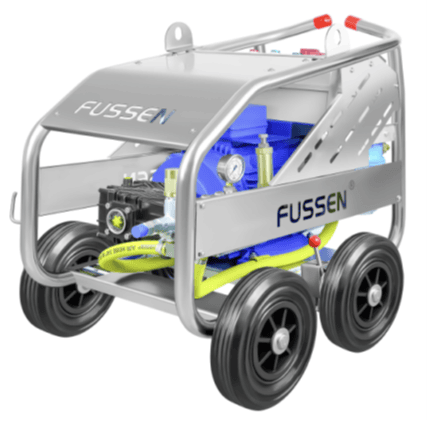

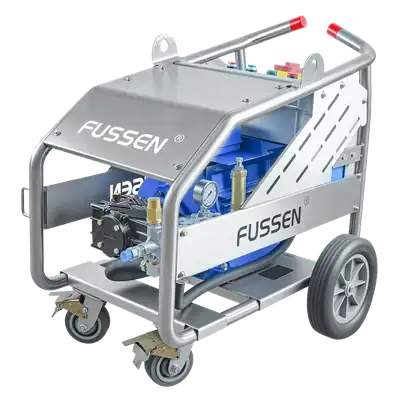

The FME Series is an electric high-pressure washer built for marine and shipboard cleaning, where corrosion resistance and steady performance matter most. An industrial-grade motor paired with a high-pressure plunger pump delivers up to 500 bar at 15 to 22 L/min, suited to deck cleaning, equipment maintenance, and general shipboard wash-down.
A stainless-steel frame stands up to humid, salty conditions for longer onboard life, and an intelligent soft-start system reduces electrical and mechanical stress for smoother operation.
- Stainless-steel frame: strong, durable, highly corrosion-resistant for marine use
- Industrial-grade motor: four-pole, low-speed, quiet and durable
- Intelligent soft start: smooth start/stop that extends machine life
- Premium plunger pump: stainless build with ceramic plungers and durable seals
- Compact and easy to move: space-saving footprint for tight onboard areas
technical specifications
Technical Specifications
| Model | FME 21/35 | FME 15/50 | FME 22/50 | FME 18/60 | FME 18/50 |
| Voltage (Ph/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 | 3/380/50 | 3/440/60 |
| FlowRate (L/min) | 21 | 15 | 22 | 18 | 18 |
| Pressure (Bar/Mpa/PSI) | 350/35/5075 | 500/50/7250 | 500/50/7250 | 600/60/8700 | 500/50/7250 |
| Power ( kW ) | 15 | 15 | 22 | 22 | 18 |
| RPM | 1450 | 1450 | 1450 | 1450 | 1750 |
| Weight ( kg ) | 200 | 200 | 230 | 230 | 200 |
| Dimensions (L x W x H mm) | 950 x 700 x 900 | 950 x 700 x 900 | 950 x 700 x 900 | 950 x 700 x 900 | 950 x 700 x 900 |
Key Components
- Intelligent Electric Control Box ( Soft Start )
- Industrial-Grade Motor
- High-Pressure Plunger Pump
- Pressure Regulating Valve
- Safety Valve
- High-Precision Filter
- Stainless Steel Pressure Gauge
- Solid Tires
- Swivel Wheels
- High-Pressure Hose
- High-Pressure Gun
- Fan-Shaped Nozzle
- Stainless Steel Frame
- Optional Accessories
- Rotating Nozzle
