FUSSEN FWE SERIES
FUSSEN FWE SERIES
Up to 600 bar | 18 to 22 L/min

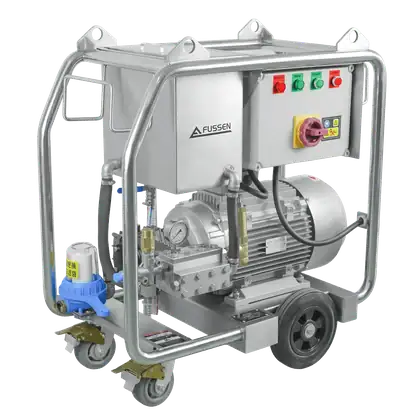

The FWE Series is an electric high-pressure washer for marine maintenance where a built-in water tank is needed to stabilise supply. An industrial motor and high-pressure plunger pump deliver up to 600 bar at 18 to 22 L/min, effective on deck areas, hull components, engine rooms, and general ship wash-down.
A stainless-steel water tank supports continuous cleaning and reduces interruptions from unstable inlet conditions, while the build focuses on durability and corrosion resistance for long working hours at sea.
- Stainless-steel water tank: stable supply for uninterrupted cleaning
- Stainless-steel frame: durable and highly corrosion-resistant
- Industrial-grade motor: four-pole, low-speed, quiet and durable
- Intelligent soft start: smooth start/stop that extends machine life
- Premium plunger pump: ceramic plungers and durable seals for long-term stability
technical specifications
Technical Specifications
| Model | FWE 21/35 | FWE 15/50 | FWE 22/50 | FWE 18/60 | FWE 18/50 |
| Voltage (Ph/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 | 3/380/50 | 3/440/60 |
| FlowRate (L/min) | 21 | 15 | 22 | 18 | 18 |
| Pressure (Bar/Mpa/PSI) | 350/35/5075 | 500/50/7250 | 500/50/7250 | 600/60/8700 | 500/50/7250 |
| Power ( kW ) | 15 | 15 | 22 | 22 | 18 |
| RPM | 1450 | 1450 | 1450 | 1450 | 1750 |
| Weight ( kg ) | 200 | 200 | 230 | 230 | 200 |
| Dimensions (L x W x H mm) | 950 x 520 x 900 | 950 x 520 x 900 | 950 x 520 x 900 | 950 x 520 x 900 | 950 x 520 x 900 |
Key Components
- Intelligent Electric Control Box ( Soft Start )
- Industrial-Grade Motor
- High-Pressure Plunger Pump
- Pressure Regulating Valve
- Safety Valve
- High-Precision Filter
- Stainless Steel Pressure Gauge
- Stainless Steel Water Tank
- Solid Tires
- Swivel Wheels
- High-Pressure Hose
- High-Pressure Gun
- Fan-Shaped Nozzle
- Stainless Steel Frame
- Optional Accessories
- Rotating Nozzle
