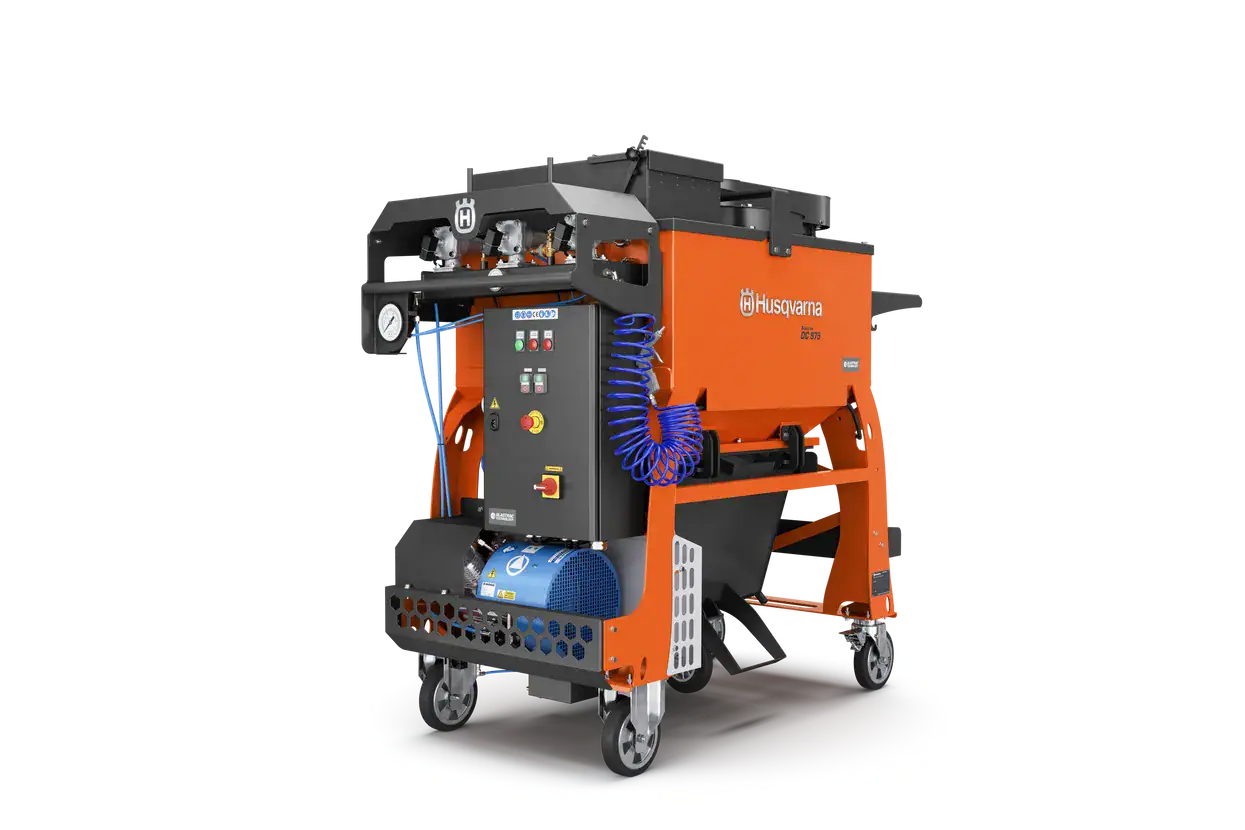

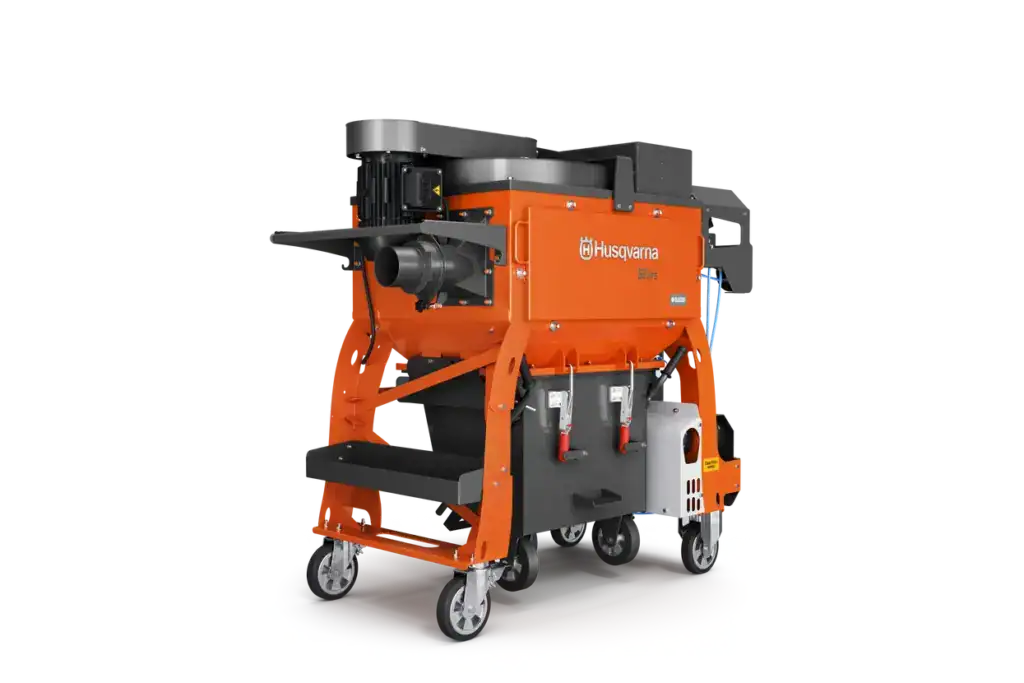

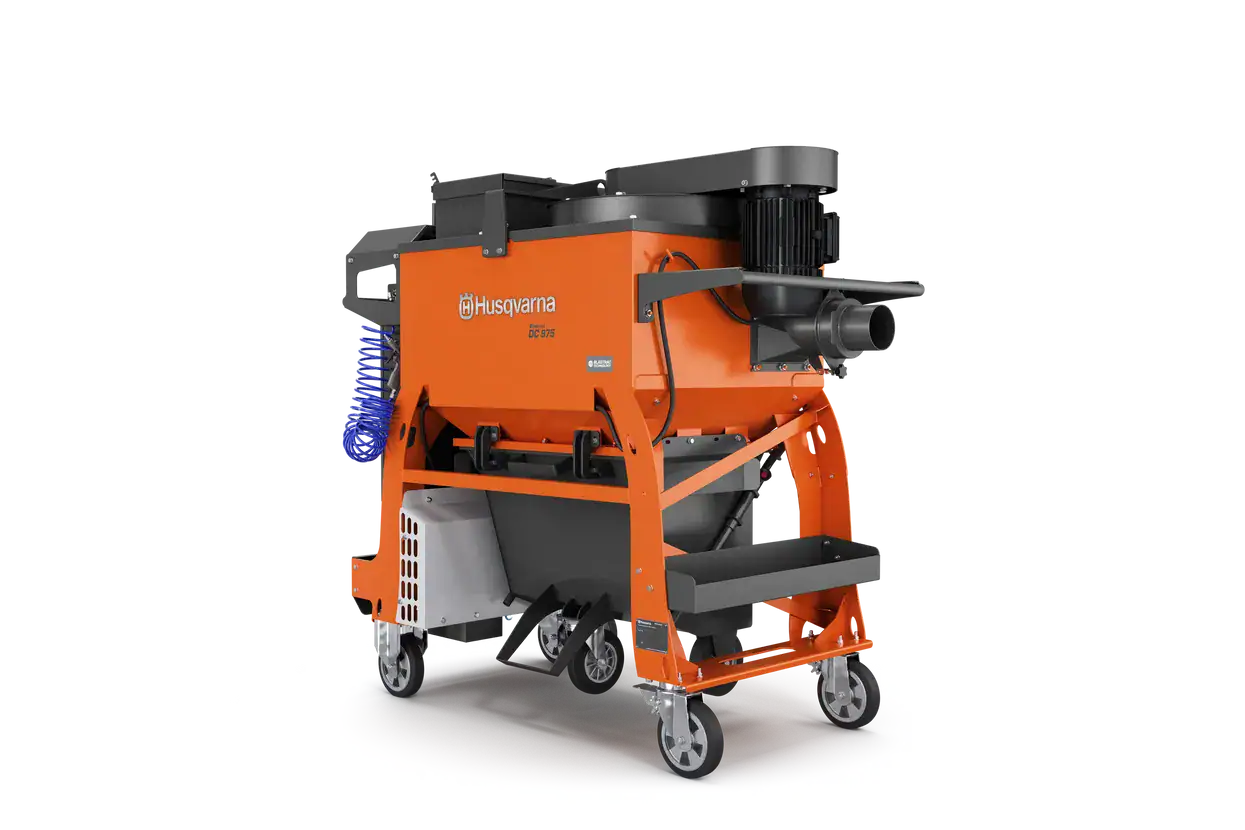

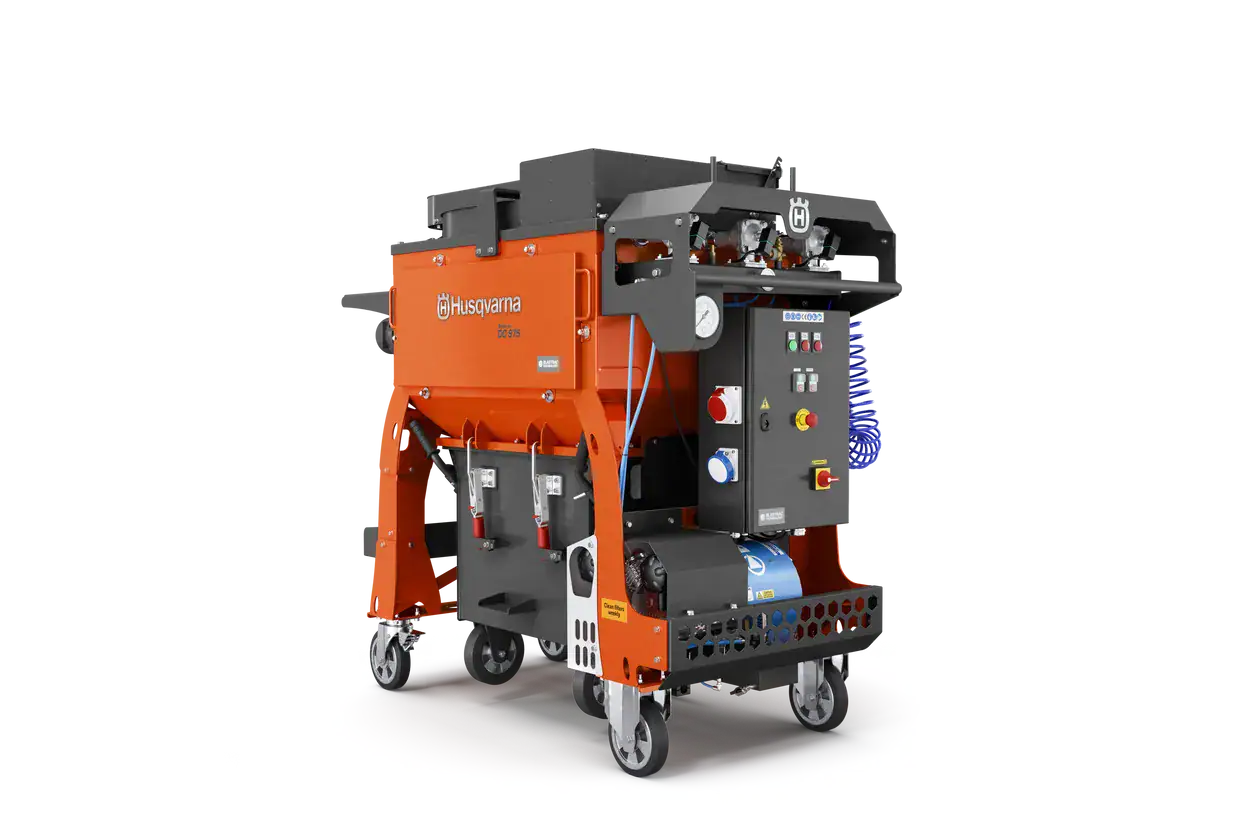

  BLASTRAC DC975

The Blastrac DC 975 is a heavy-duty dust collection system built for power, efficiency and continuous productivity. It pairs with large shot blasting, steel blasting and scarifying machines and is aimed at professional contractors who need uninterrupted operation.

It runs nine M-class cartridge filters, with an optional H14 HEPA filter kit for finer capture, and a pulse cleaning system that cleans the filters automatically during operation. Collected dust is handled by a dustbin kit, and the unit can instead be fitted with a Longopac or big-bag system.

  • Nine M-class cartridge filters, optional H14 HEPA kit
  • Automatic pulse filter cleaning
  • Dustbin kit, Longopac or big-bag collection options
  • For large shot blasting, steel blasting and scarifying machines

technical specifications

All Specifications
Motor
Rated Input Power 9 kW
Phases 3 ph
Voltage 400 V
Rated Current 17.62 A
Frequency 50 Hz
Max. Vacuum 51 mbar
Power Source Corded
Product Data
Air Flow 3,510 m³/h
Container Capacity 150 L
Dimensions
Product Size Length 1,731 mm
Product Size Width 866 mm
Product Size Height 1,643 mm
Weight (Complete Product w/o Side Packed Articles) 521 kg
Packaging Length 2,130 mm
Packaging Width 920 mm
Packaging Height 1,800 mm
Article Gross Weight 625,000 g
