FUSSEN FCE SERIES
FUSSEN FCE SERIES
350 to 500 bar | 15 to 22 L/min

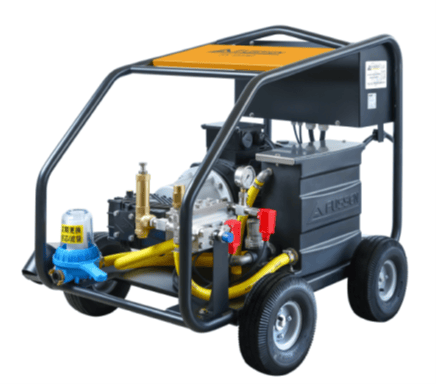

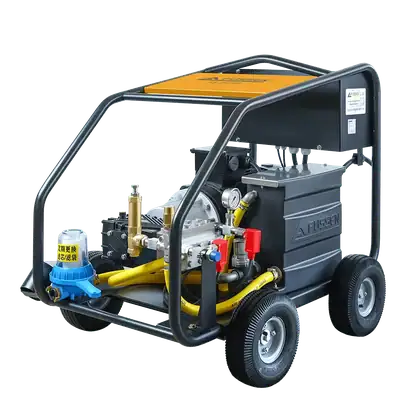

The FCE Series is an electric high-pressure washer built for industrial users who need higher pressure and flow with smooth running over long shifts. An industrial-grade motor and an intelligent soft-start system reduce startup shock, protect the electrical components, and improve stability in frequent start-stop routines.
A high-pressure plunger pump and a large water tank keep supply and pressure steady during continuous cleaning. With up to 500 bar and 22 L/min, it suits heavy equipment cleaning, industrial wash-down, and surface preparation where more cutting power is needed.
- Intelligent soft start: smooth start/stop that extends machine life
- Water inlet protection: dual precision filters and a floating-valve tank for clean, stable supply
- Industrial-grade motor: four-pole, low-speed, quiet and durable
- Premium plunger pump: ceramic plungers and durable seals for long-term reliability
technical specifications
Technical Specifications
| Model | FCE 21/35 | FCE 15/50 | FCE 22/50 | FCE 18/60 |
| Voltage (Ph/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 | 3/380/50 |
| FlowRate (L/min) | 21 | 15 | 22 | 18 |
| Pressure (Bar/Mpa/PSI) | 350/35/5075 | 500/50/7250 | 500/50/7250 | 600/60/8700 |
| Power ( kW ) | 15 | 15 | 22 | 22 |
| RPM | 1450 | 1450 | 1450 | 1450 |
| Weight ( kg ) | 240 | 240 | 265 | 265 |
| Dimensions (L x W x H mm) | 950x700x900 | 950x700x900 | 950x700x900 | 950x700x900 |
Key Components
- Intelligent Electric Control Box ( Soft Start )
- Industrial-Grade Motor
- Coupling
- High-Pressure Plunger Pump
- Pressure Regulating Valve
- Safety Valve
- High-Precision Filter
- Stainless Steel Pressure Gauge
- Large-Capacity Water Tank
- Float Valve
- Carbon Steel Heavy-Duty Frame
- Pneumatic Shock-Absorbing Tires
- Swivel Wheels
- High-Pressure Hose
- High-Pressure Gun
- Fan-Shaped Nozzle
- Optional Accessories
- Rotating Nozzle
